ESC Features
- Input voltage range 2S-8S LiPo
- Sensored, Sensorless and SmartSense™ running modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
- Oversized factory equipped thermally controlled 40mm fan
- Waterproof design for all weather conditions
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
- Data-logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
- Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
- Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
- Easily tune and update ESC with USB and Bluetooth™ programming options.
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
- Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty
Motor Features
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding enables low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Overview

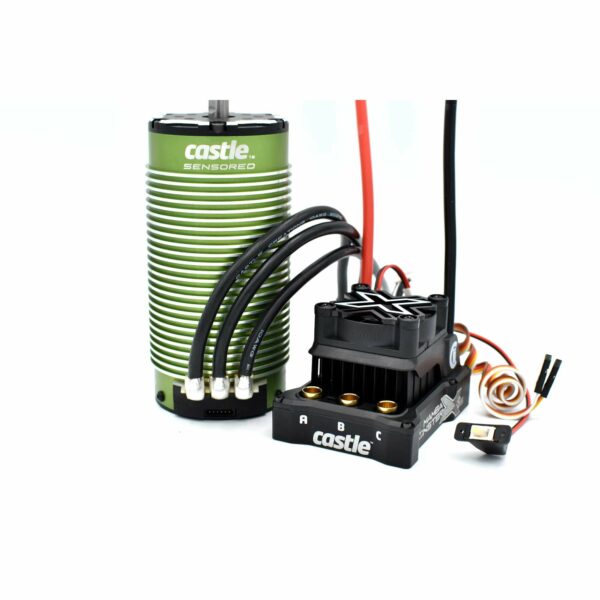

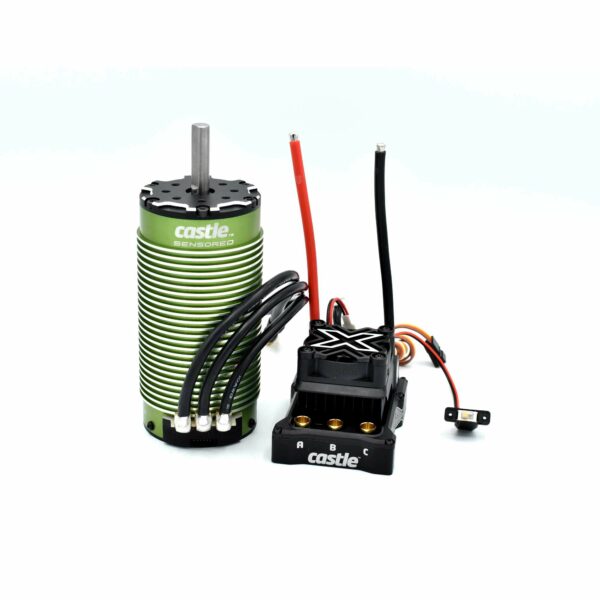

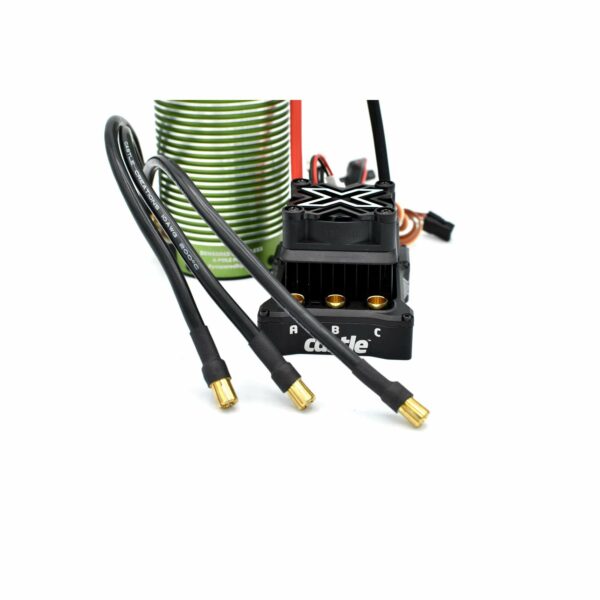

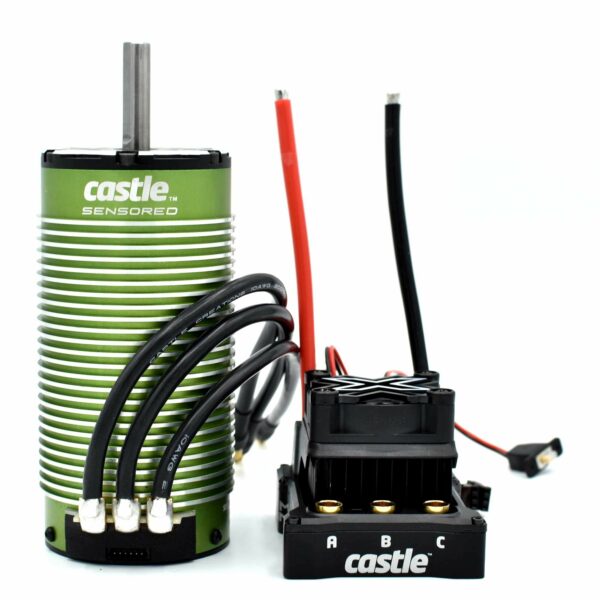

Pairing the sensor ready MAMBA MONSTER X 8S with the Castle 2028-800KV sensored motor enables users with heavy, high speed rigs to experience controllable low-end ranges, without sacrificing power, punch, or speed. SmartSense mode uses the motors sensors to start the motor to provide smooth cog free starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. Electronic timing in SmartSense will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled hybrid between smooth sensored startups and high-efficiency sensorless drive.
